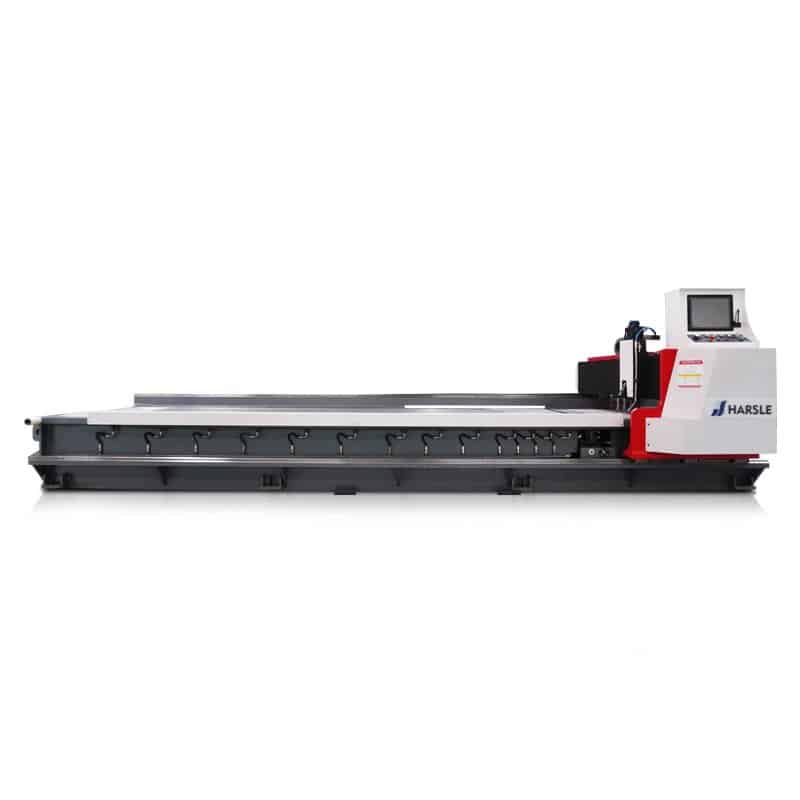

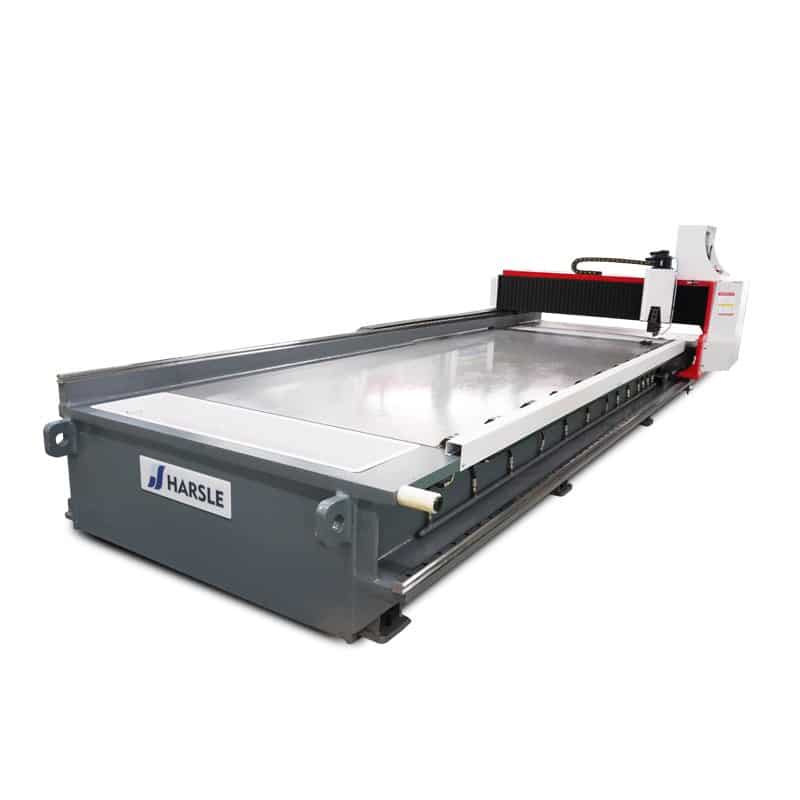

CNC Gantry V Groover CNC Thin Plate Horizontal Grooving Machine

CNC Gantry V Groover CNC Thin Plate Horizontal Grooving Machine

1. The gantry grooving machine body is a full steel plate welded structure, tempering aging, small deformation;

2. Using a CNC device, automatic processing; CNC Gantry V Groover

3. Using air pressure device, clamping, release full automation;

4. The underside of the planer blade can be adjusted after wear to improve the service life of the gantry grooving machine;

5. Using five planers to work together, the efficiency of planning is high;

6. There is a detachable bracket in front of the table to facilitate the processing of long workpieces;

7. Full servo motor, accurate positioning, high precision;

8. All operating systems of the gantry grooving machine are precisely combined with electro-pneumatics, which is easy to operate, flexible in action, high in efficiency, low in noise, and free of environmental pollution.

9. The frame and the beam are all box-shaped. After finite element optimization design, the all-steel welding is tempered to eliminate residual stress, and the overall rigidity is good and the precision is good.

10. Before and after the tool holder (Y1 axis) movement, up and down (Z-axis) movement and front and rear (Y2 axis) movement of the end press material are controlled by the numerical control system, AC servo motor drive, ball screw drive, high control precision, accurate positioning features.

11. The left and right (X-axis) movement of the beam is driven by an AC variable frequency speed-regulating motor, and the helical gear and the rack-and-pinion drive have the characteristics of high speed and strong load capacity.

12. The pneumatic pressing system can adaptively press the side of the workpiece and the feeding side according to different thicknesses, which is one of the effective measures to ensure processing precision and repeatability.

13. The compressed air blowing and cooling system not only prevents the cutting waste from scratching the surface of the workpiece but also improves the life of the tool by cooling the tool. CNC Gantry V Groover

CNC Gantry V Groover Main Features

Gantry grooving machine adopts an advanced CNC system with a novel design. It has the characteristics of high processing accuracy, simple operation, no noise, and no vibration. This machine tool is used to process V-grooves, U-grooves, and other irregular grooves on sheet metal parts, and is especially suitable for V-groove processing before sheet metal parts are bent, Including stainless steel plates, aluminum plates, aluminum-plastic plates, copper plates, iron plates, bakelite boards, acrylic plates, and other special plates. CNC Gantry V Groover
