25mm Cutting Machine HARSLE 25mm Hydraulic Sheet Metal Guillotine Cutting Machine is controlled by an inverter, which can achieve a high positioning accuracy of 0.05mm of the back gauge by changing the frequency and voltage of the motor. For fine shearing results, the blade gap of the metal guillotine machine could be adjusted for various plates. With the development of the industrial age, intelligence has become a developed trend. More and more CNC hydraulic shearing machine has entered thousands of factories instead of mechanical shearing machine.

25mm Cutting Machine Main Features

1. The streamlined welded machine structure achieves high rigidity; the metal guillotine machine is designed by ANSYS software which can ensure the reliability and precision of the shearing machine. 25mm Cutting Machine

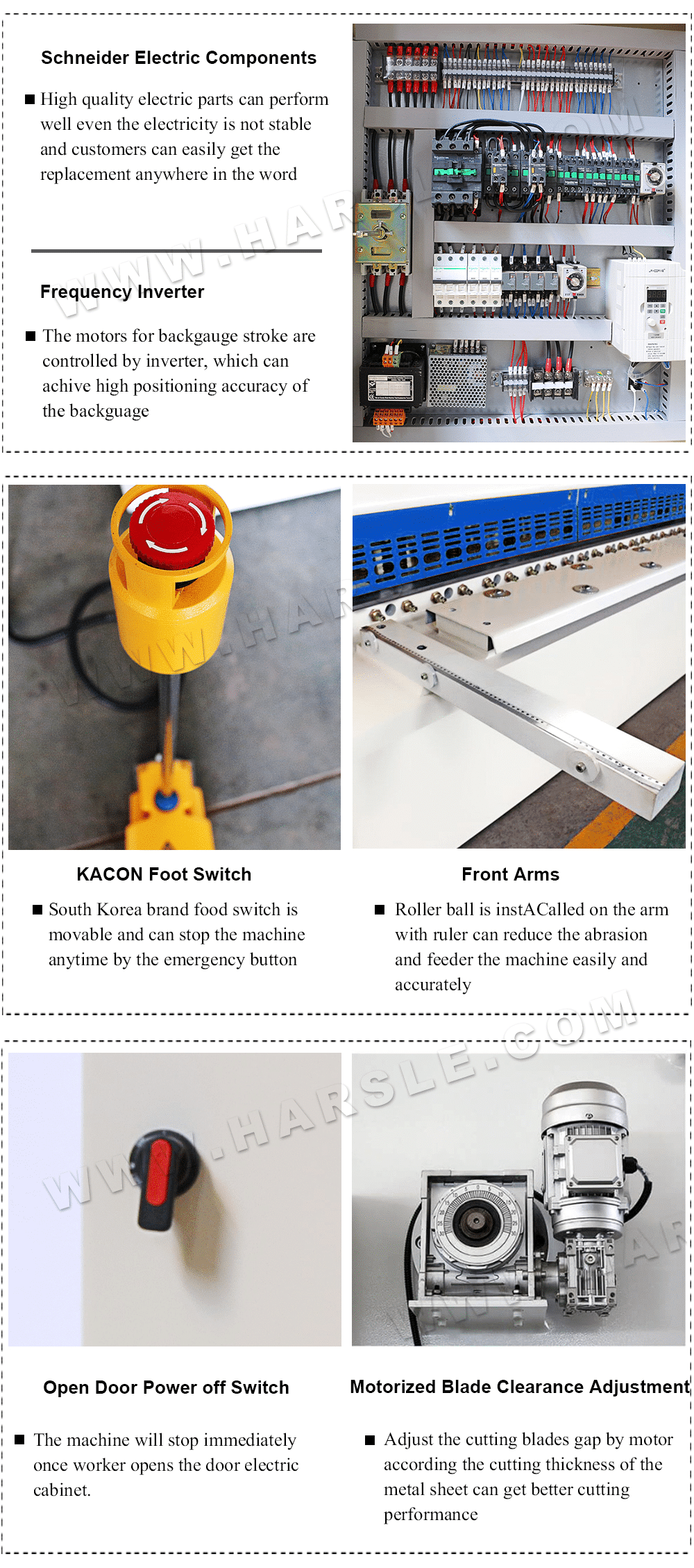

2. The motors for the back gauge are controlled by an inverter, which can achieve a high positioning accuracy of 0.05mm of the back gauge by changing the frequency and voltage of the motor.

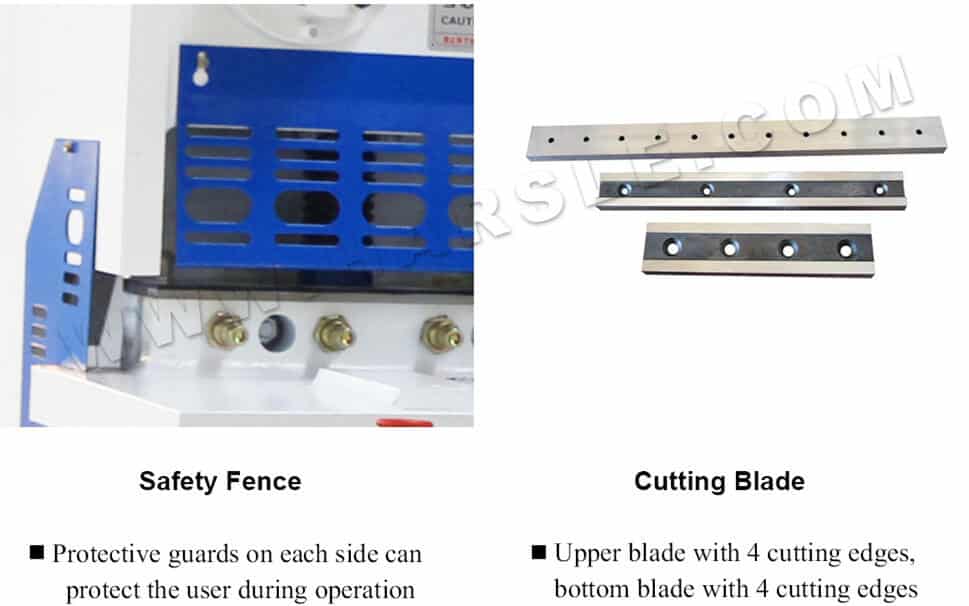

3. Top blade with four cutting edges and bottom blade with four cutting edges (6CrW2Si).

4. X-axis(Backgauge) and cutting time can be programmed by the E21S system controller, which can store up to 40 groups of programs.

5. Cutting angle can be adjusted by the CNC controller, the Blade gap can be motorized controlled.

6. Hydraulic overload can be protected by overflow valve, knife rack returns by Nitrogen cylinders. automatic precision punching and shearing machine

7. Footswitch with the emergency button can stop the machine immediately when the accident happens.

8. Adjusting the knife gap between upper and bottom blades can achieve better cutting performance. 25mm Cutting Machine

9. NC shearing machine front arms with ruler and roll balls can ensure cutting accuracy and feed the material easily.

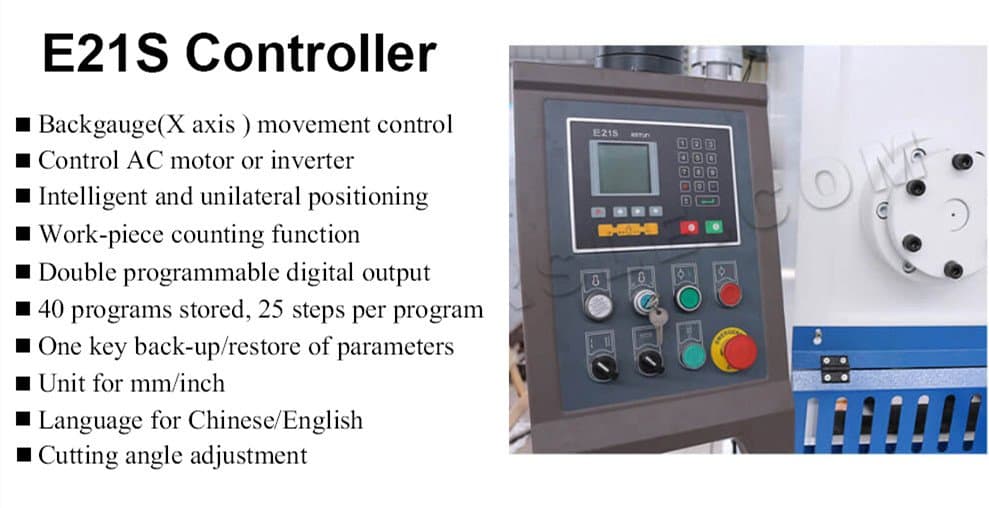

E21S NC controller

1. Backgauge(X-axis ) movement control

2. Control AC motor or inverter

3. Intelligent and unilateral positioning

4. Work-piece counting function

5. Double the programmable digital output

6. 40 programs stored, 25 steps per program

7. One key back-up/restore of parameters

8. Unit for mm/inch 25mm Cutting Machine

9. Language for Chinese/English
