Sheet Metal Cutting Plasma Gantry

Sheet Metal Cutting Plasma Gantry

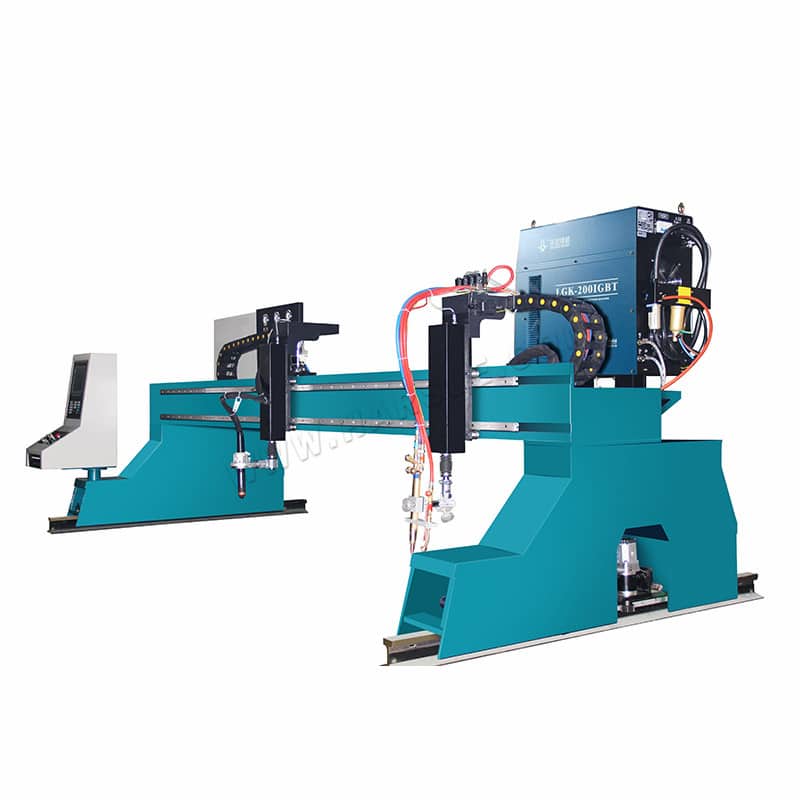

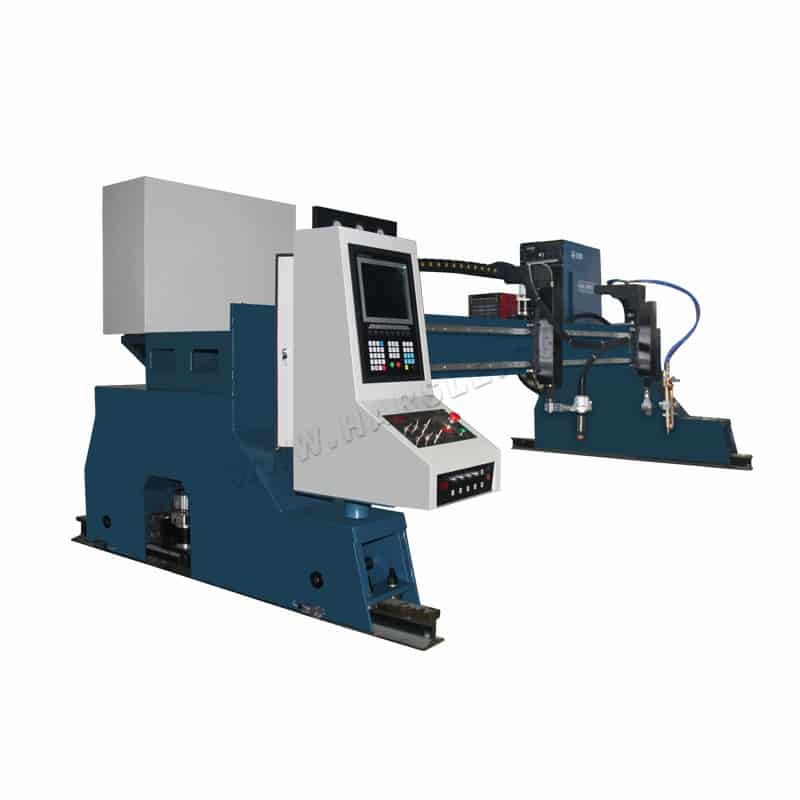

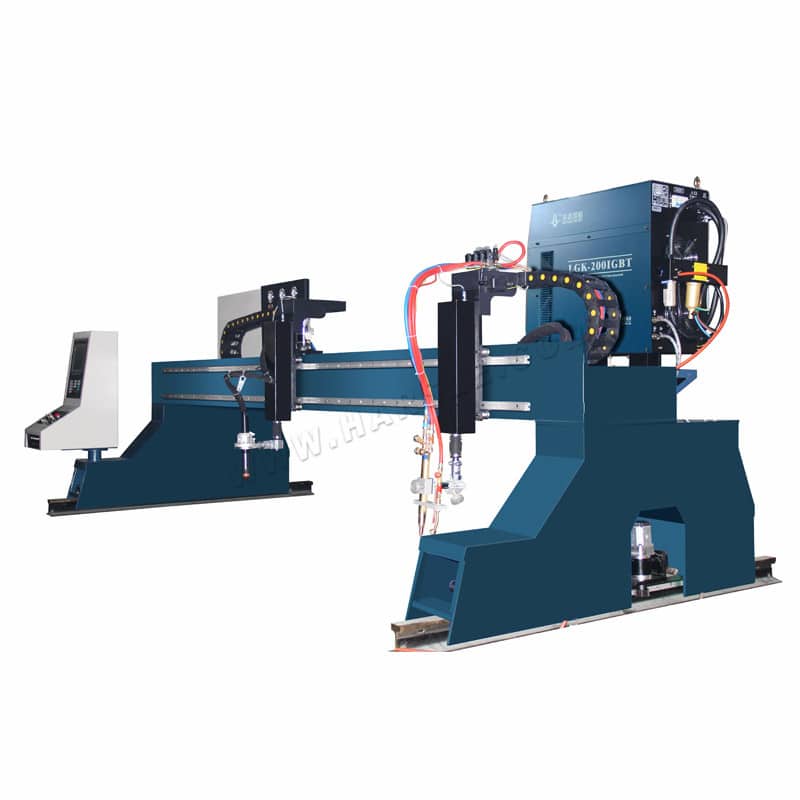

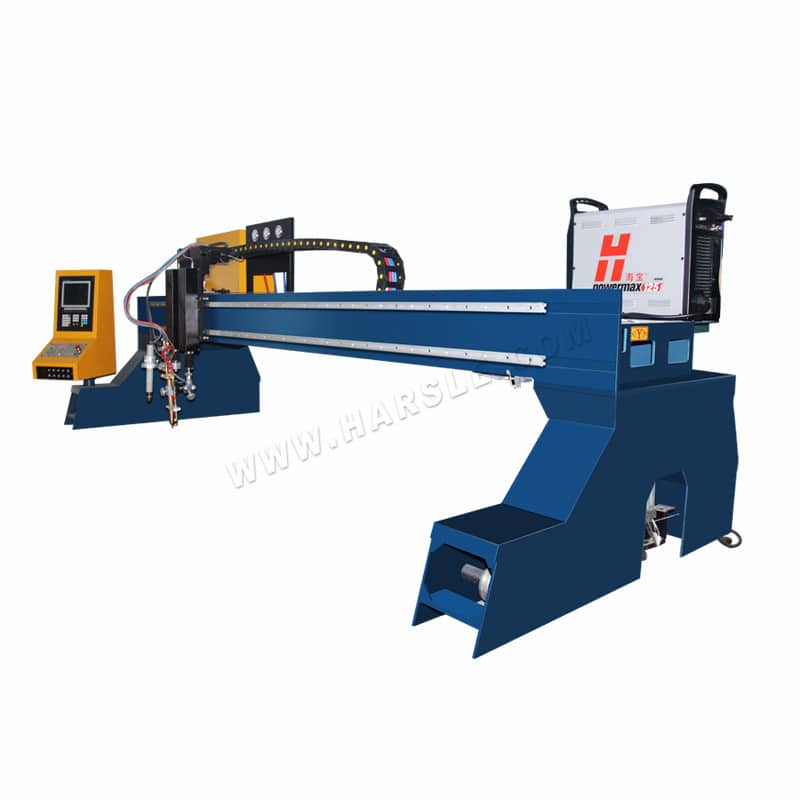

Heavy-duty gantry-type frame structure, the beam adopts a box-type welded structure, no deformation, high-efficiency bilateral drive, compact structure, overall tempering, fully eliminate welding stress, thick and atmospheric appearance, stable and reliable performance, which is the most standard in the cutting machine industry. A universal CNC cutting machine with lateral spans of 3m, 4m, 5m, 6m|8m and other specifications, both with bilateral drive, double-axis linear guide, standard for lateral gauge 4m, effective cutting range: 3.2m Longitudinal rail length can be customized, single flame or single plasma cutting method with automatic ignition; it can also be added into flame and plasma cutting mode. The length of the longitudinal rail is 2m per section. The lengthening rail can be configured according to the user’s requirements and the span of the beam can be widened. Multiple torches or bevels can be cut according to user requirements. Sheet Metal Cutting Plasma Gantry

CNC Sheet Metal Cutting Plasma Gantry Features

1. แพลตฟอร์มเท้าแขน
สมบูรณ์ พลาสม่าซีเอ็นซี ระบบเครื่องตัดท่อประกอบด้วย 4 ส่วนหลัก: แท่นตัดพลาสม่าคานเท้าแขน ชั้นวางท่อหมุนได้ ตัวควบคุม CNC และแหล่งจ่ายไฟพลาสม่า เครื่องตัดพลาสม่ามีตัวยึดคบเพลิงแบบ 3 แกน สามารถตัดปลายท่อสี่เหลี่ยมหรือตรงกลางก็ได้
The plasma torch carrier also includes a collision protection design. When the plasma cutting nozzle is about to collide with the pipe, the signal will be immediately received by the CNC system. Then it stops working automatically. Sheet Metal Cutting Plasma Gantry
2. ชั้นวางหลอดหมุน
The plasma pipe cutting machine includes a feed system. When the square tube is cut, the beam can move back and forth in the direction. Automatically find the point to be cut. Sheet Metal Cutting Plasma Gantry

แอปพลิเคชัน

This gantry plasma cutter is mainly used for the precise cutting of large panels. It is a kind of cutting and cutting equipment with high efficiency and energy saving, which can greatly improve the utilization rate and cutting efficiency of steel plates. This machine can work continuously without stop Sheet Metal Cutting Plasma Gantry
