Cutting Machine QC12K Hydraulic Sheet Metal with E21S
| Weight | 800 kg |
|---|---|
| Power Source |
Hydraulic |
| Controller |
E21S |
| Cutting Thickness |
40mm |
| Cutting Length |
3200mm |
| Brand |
HARSLE |
| Lead Time |
30 Days |
| Payment Method |
LC ,T/T |
| Price Term |
EXW |
| Warranty |
Three Years |
Cutting Machine with E21S not only provides high strength and sensitivity but also lowers your production cost and improving your bottom line. And superior design allows for our metal sheet cutting machine to offer smooth, precise cuts whether you are cutting thin or thick material. The shearing machines become the main piece of plate processing equipment. It has been used more and more widely.
Hydraulic Cutting Machine Main Features
1. The streamlined welded machine structure achieves high rigidity; the machine is designed by ANSYS software which can ensure the reliability and precision of the shearing machine.
2. The motors for the back gauge are controlled by an inverter, which can achieve a high positioning accuracy of 0.05mm of the back gauge by changing the frequency and voltage of the motor.
3. Top blade with two cutting edges and bottom blade with four cutting edges (6CrW2Si).
4. X-axis(Backgauge) and cutting time can be programmed by the E21S system controller, which can store up to 40 groups of programs.
5. The pressing foot can fix the metal sheet during cutting operations which can eliminate operator error.
6. Hydraulic overload can be protected by overflow valve, knife rack returns by Nitrogen cylinders.
7. Footswitch with the emergency button can stop the machine immediately when an accident happens.
8. Adjusting the knife gap between upper and bottom blades can achieve better cutting performance. Cutting Machine
9. Hydraulic plate shear machine front arms with ruler and roll balls can ensure cutting accuracy and feed the material easily. Power shearing machine price.

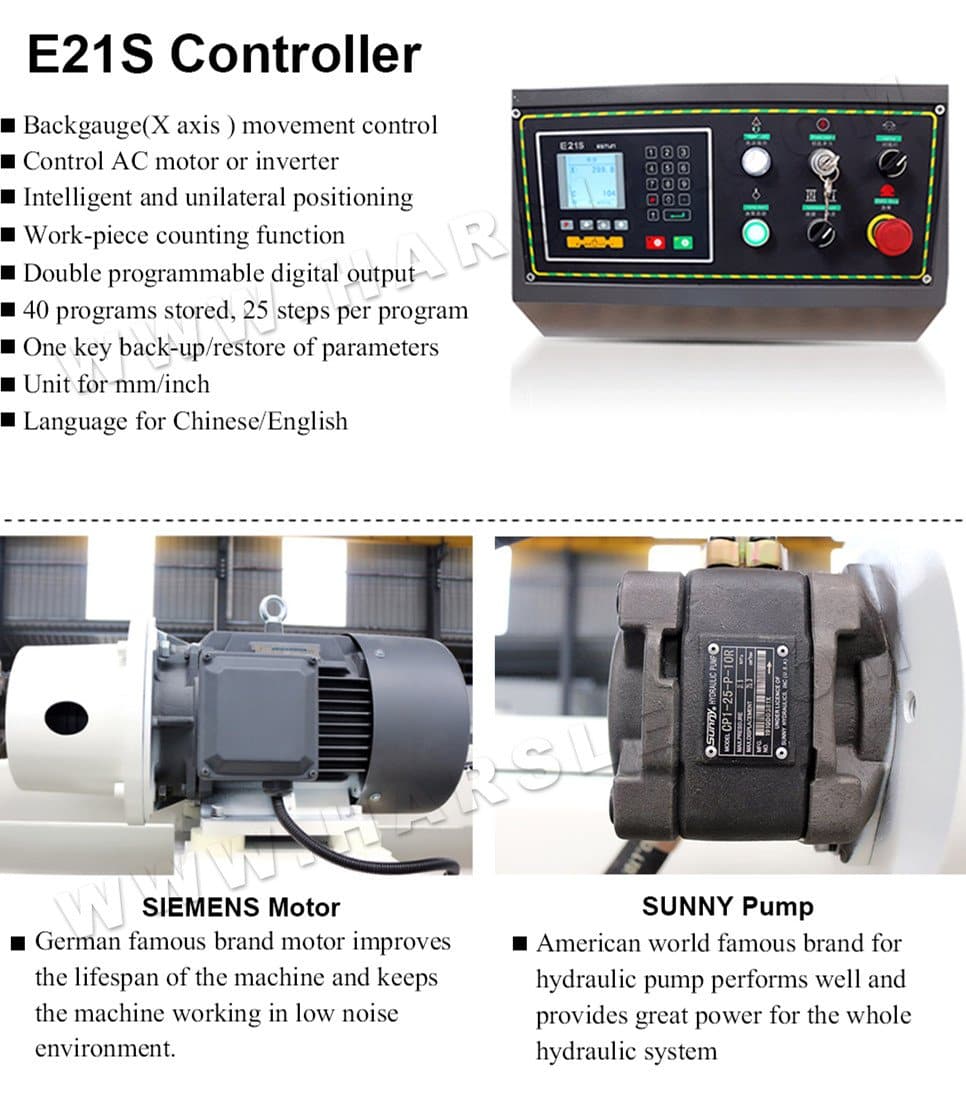

E21S NC controller
1. Backgauge(X-axis ) movement control
2. Control AC motor or inverter
3. Intelligent and unilateral positioning
4. Work-piece counting function Cutting Machine
5. Double programmable digital output
6. 40 programs stored, 25 steps per program
7. One key back-up/restore of parameters
8. Unit for mm/inch Cutting Machine
9. Language for Chinese/English
Why Choose HARSLE?
HARSLE is a professional metalworking machine manufacturer in China for many years, our productions have been sold to over 100 countries in the world!
