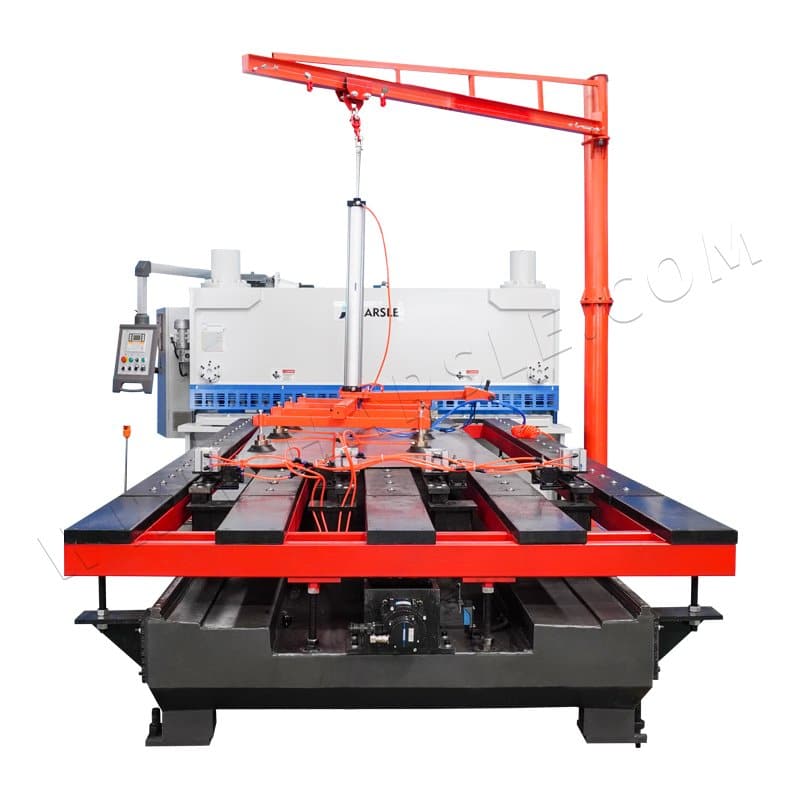

CNC Steel Guillotine Shearing Machine not only provides high strength and sensitivity but also lowers your production cost and improves your bottom line. And superior design allows for our metal sheet cutting machine to offer smooth, precise cuts whether you are cutting thin or thick material. With the development of the industrial age, intelligence has become a developed trend. The frame structure of the guillotine shearing machine adopts all-steel welding; four corners and eight sides of right-angle guide rails, high precision, good rigidity, and hydraulic preloading.

CNC Steel Guillotine Shearing Machine Main Features

1. The streamlined welded machine structure achieves high rigidity; it is designed by ANSYS software which can ensure the reliability and precision of the shearing machine.

2. Guillotine shearing machine motors for back gauge are controlled by servo motors, which can achieve high accuracy and fast speed.

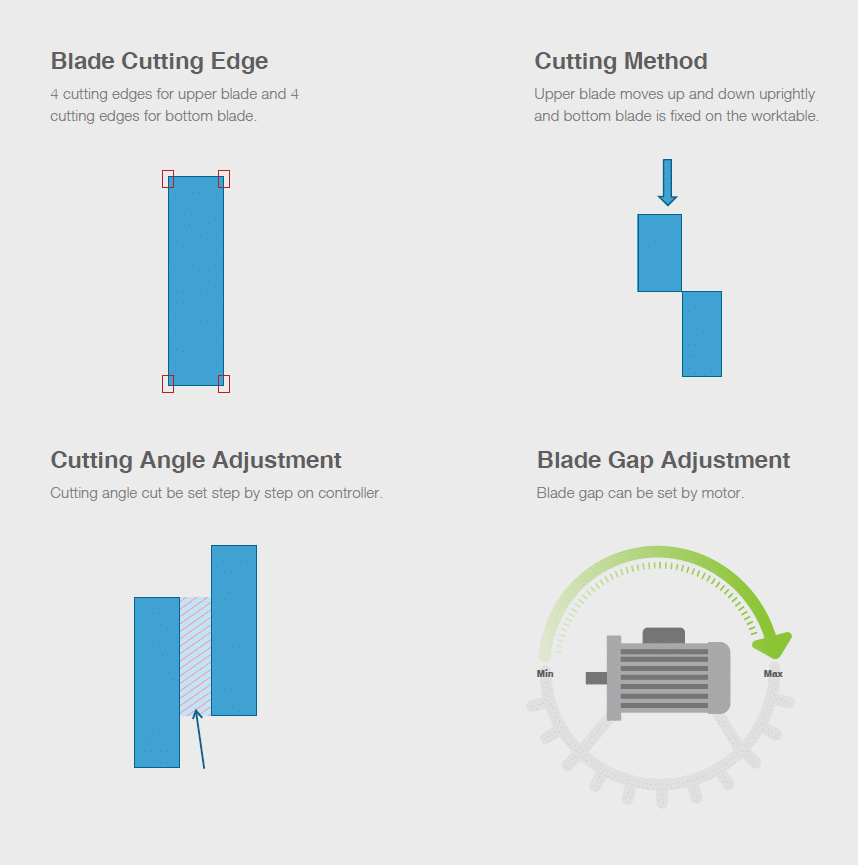

3. Top blade of the shearing machine with four cutting edges and bottom blade with four cutting edges (6CrW2Si).

4. The knife gap and cutting angle can be programmed by CNC Controller ELGO P40 only by inputting material thickness.

5. Hydraulic overload can be protected by an overflow valve and knife rack returns by Nitrogen cylinders.

6. Guillotine shearing machine footswitch with the emergency button can stop the machine immediately when an accident happens.

7. Multi-Language controller operational interface will be easy for customers from all over the world.

8. CNC shearing machine front arms with a ruler and roll balls can ensure cutting accuracy and feed the material easily.

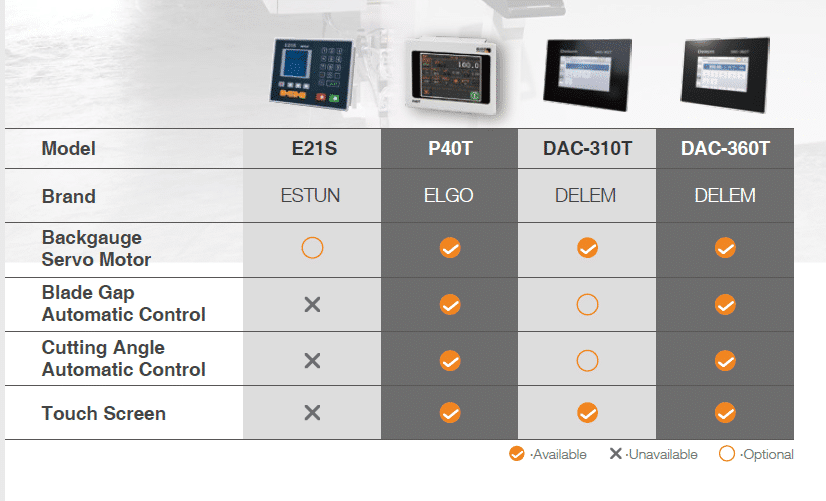

P40 CNC controller

1. LCD Display

2. Multi-Language

3. Manual inching function

4. Single-set operation

5. Program memory

6. Made in Germany

7. Cutting angle and knife gap control

9. Language for Chinese/English

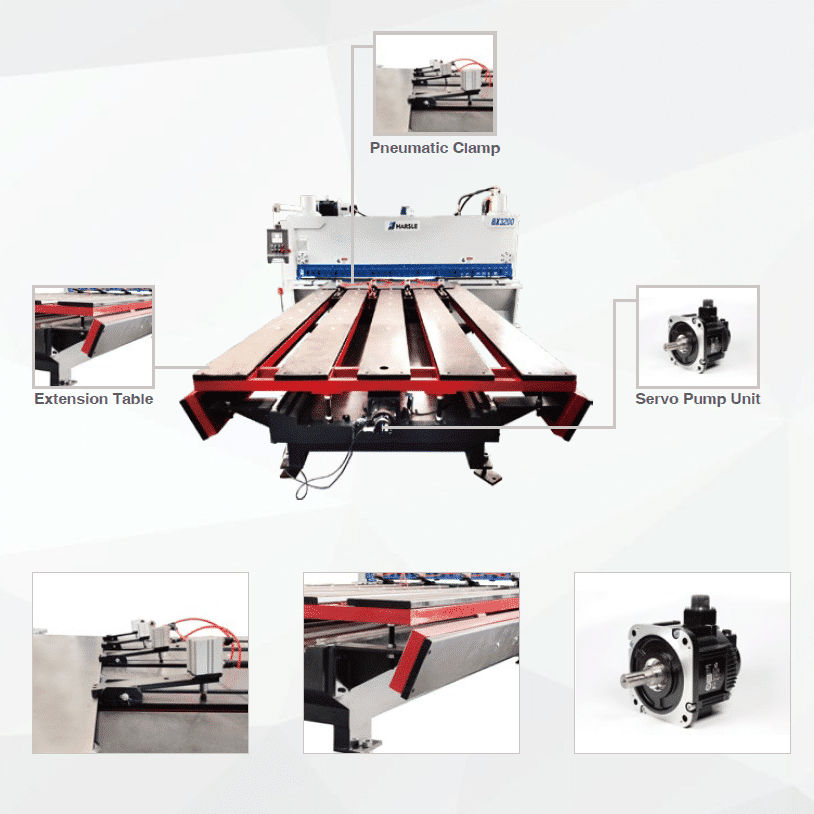

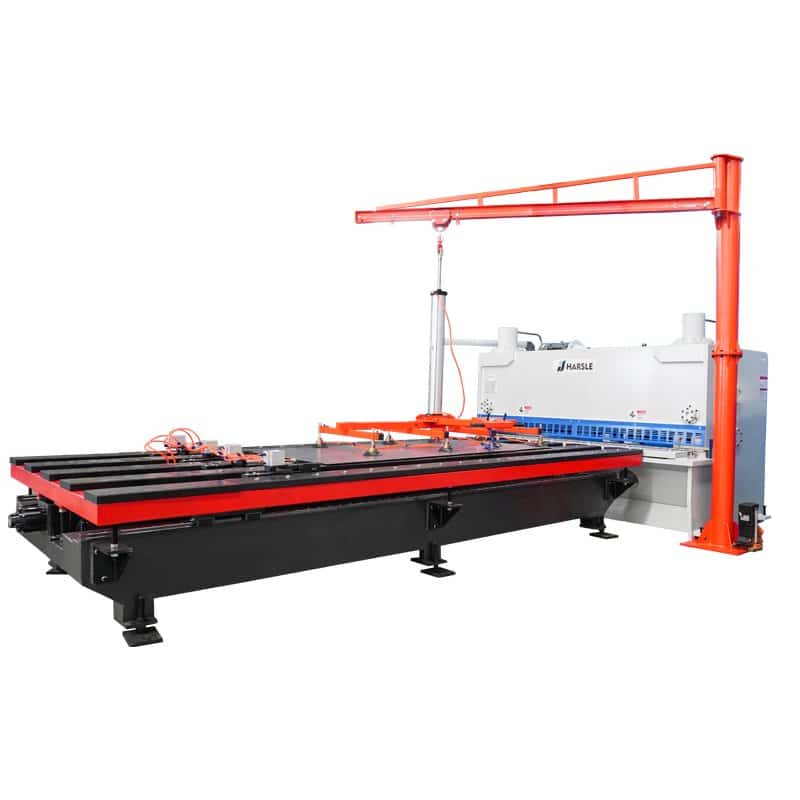

CNC Steel Guillotine Shearing Machine Front Feeding Table

The front feeding table of the shearing machine can make the metal plate on the top of the feeding plate quickly align with the inlet of theCNC Steel Guillotine Shearing Machine through the slide rail between the feeding plate and the support plate, and use the hydraulic cylinder so that the hydraulic rod can directly feed the metal plate to the inlet of the shearing machine, which greatly saves the feeding time of the device.
